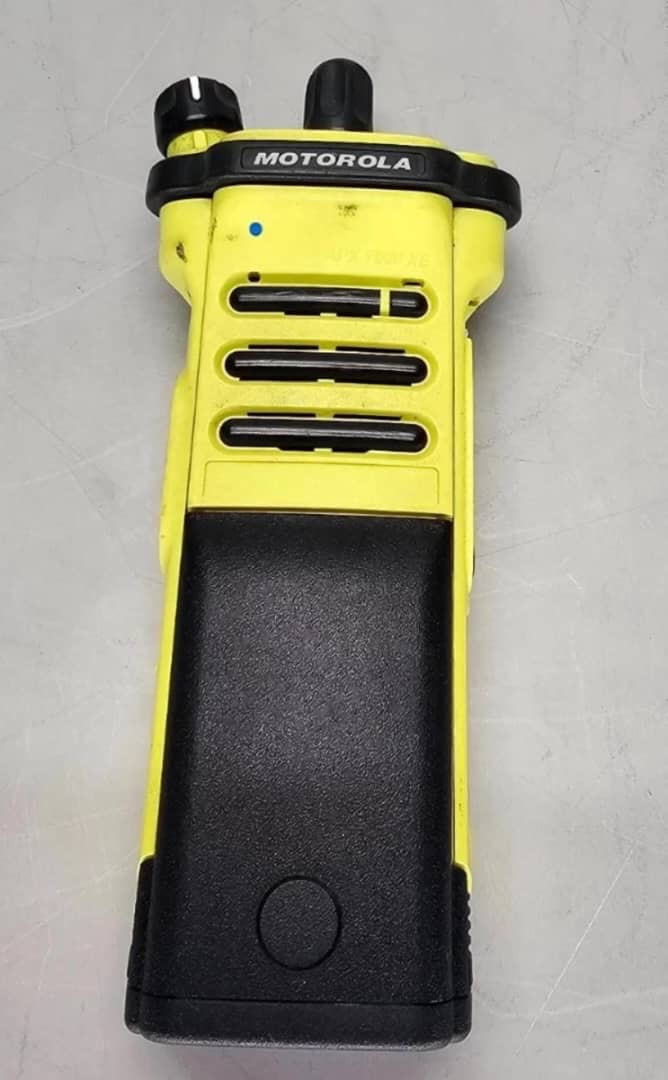

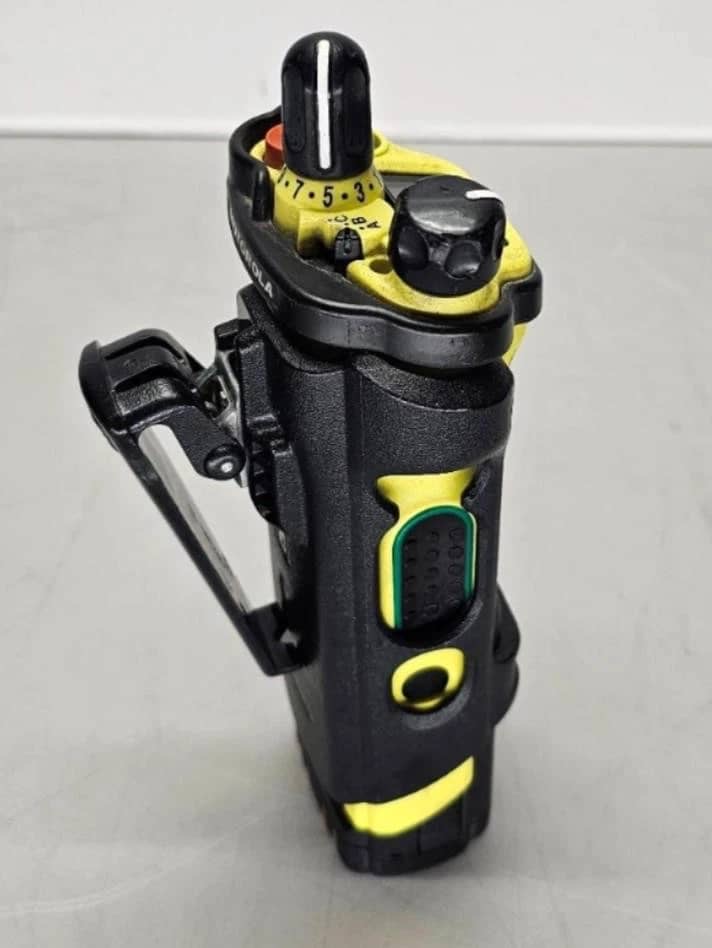

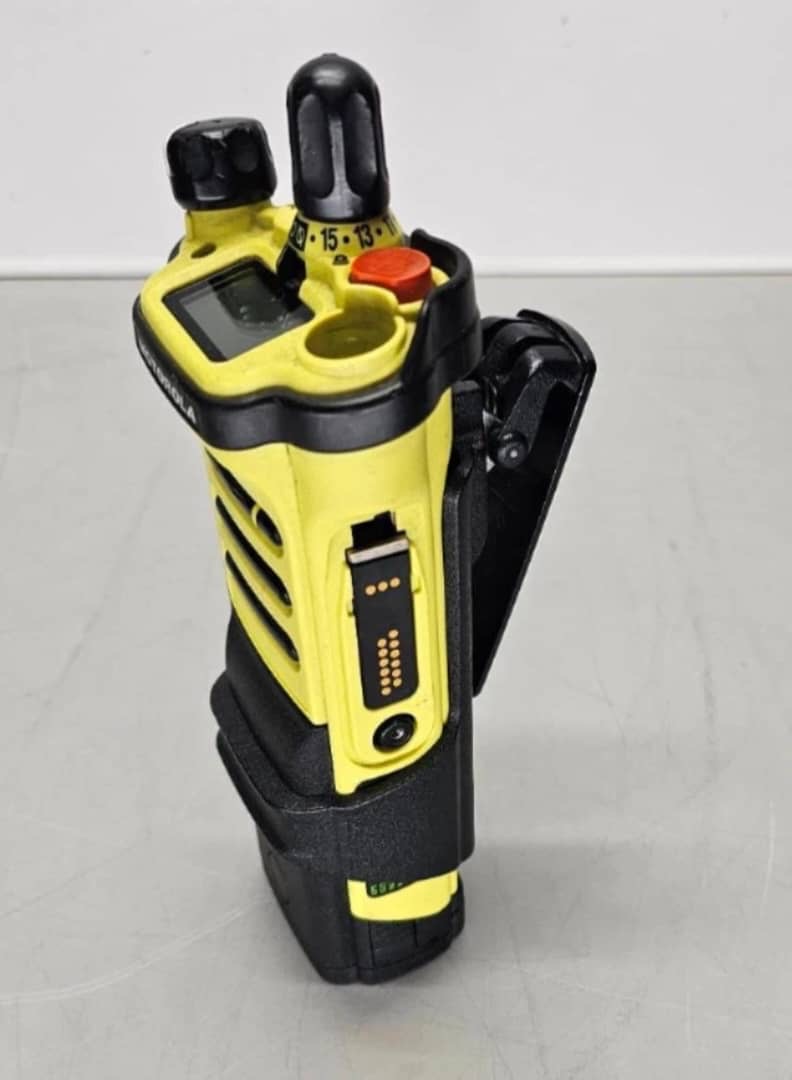

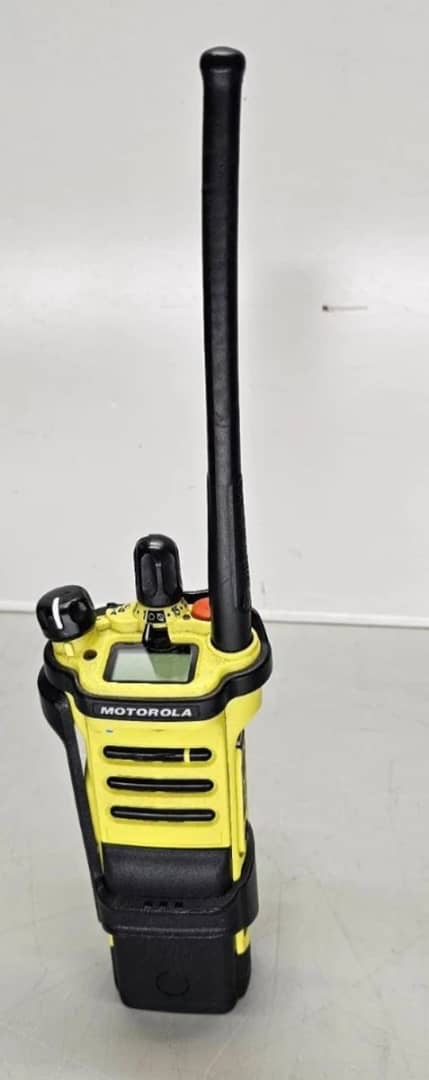

The Motorola H49TGD9PW1AN is an APX 7000XE (Extreme Environment) Model 1.5 multiband portable radio, designed for public safety, fire, and hazardous environments. This model typically features a top-mounted monochrome display without a front keypad (Model 1.5).

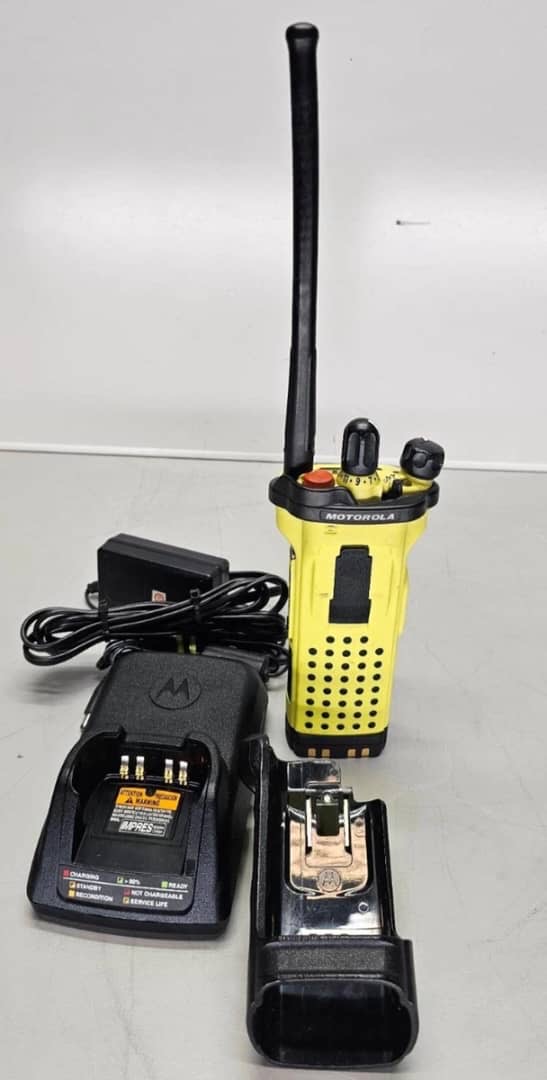

What’s Included:
Radio

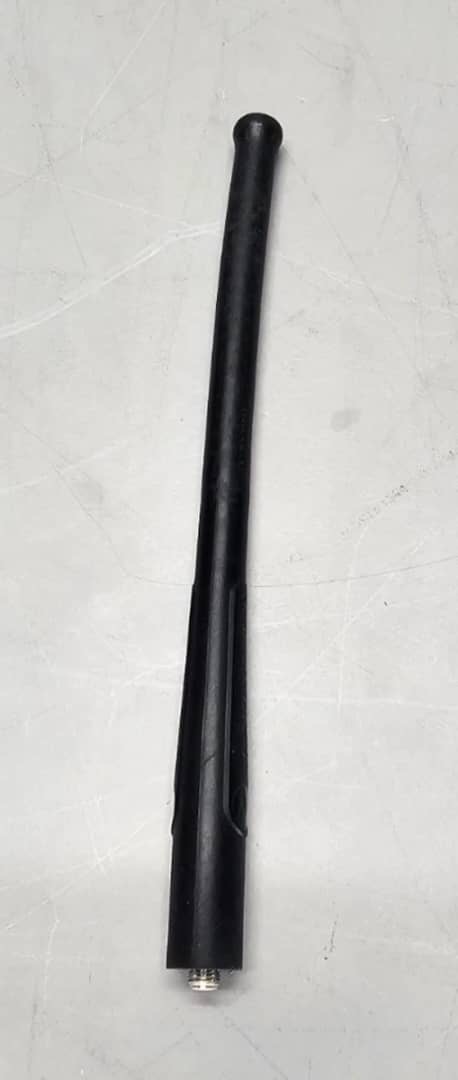

Antenna
Battery

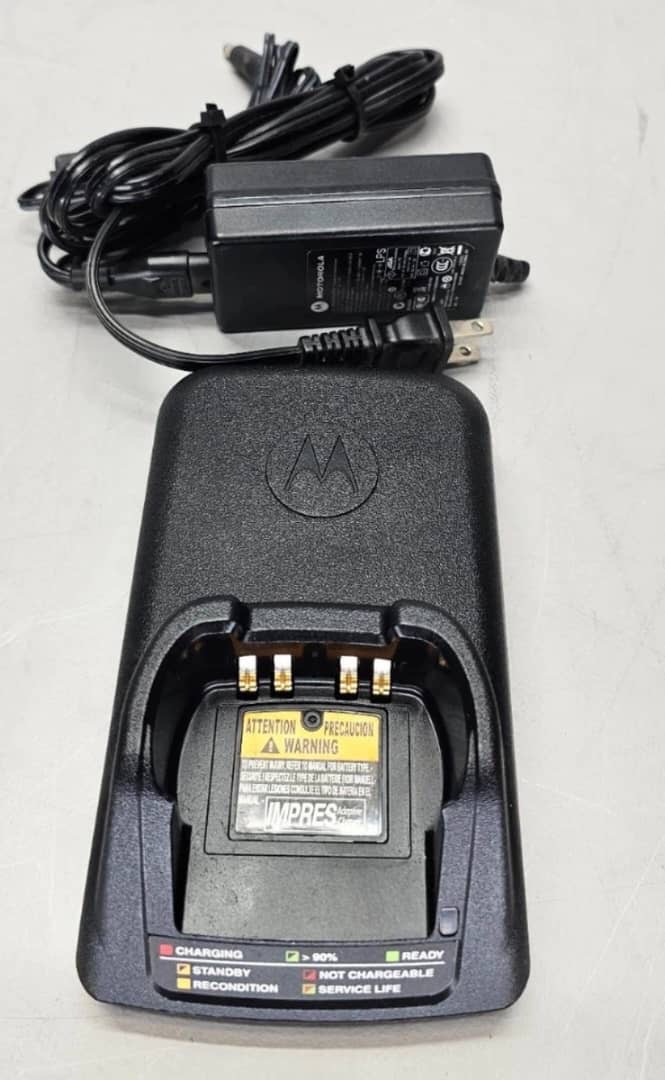

Charger

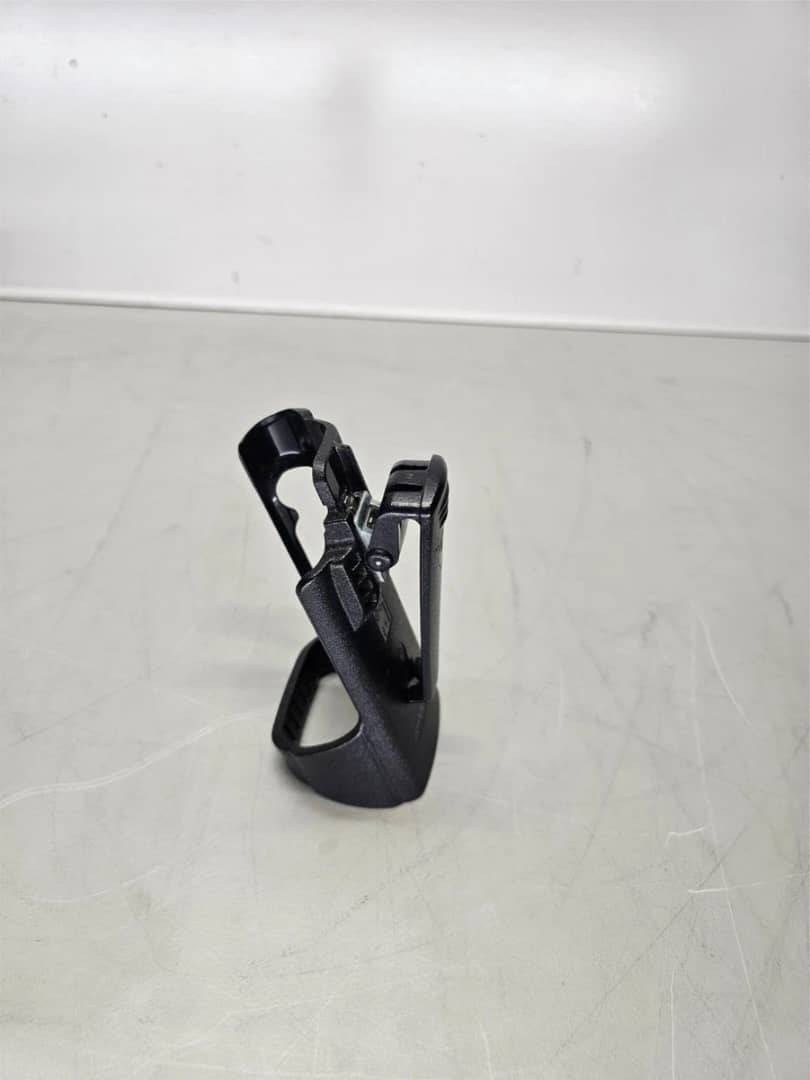

Belt Clip/Holster
30-day warranty
Frequency Bands and Ranges
700/800 MHz: 763–870 MHz.
UHF Range 2: 450–520 MHz.
Key Specifications
Model/Capacity: APX 7000XE (Model 1.5) with 1,200 channel capacity.

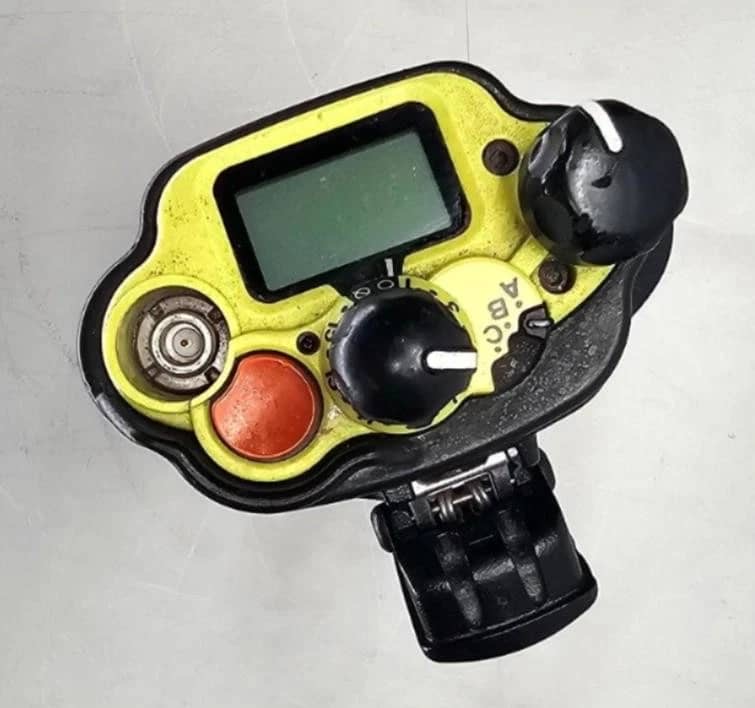

Display & Controls: Top-mounted 1-line monochrome display with no keypad; features top-mounted rotary switches and an angled volume knob.
Audio: 1W speaker with dual-microphone noise cancellation.
Ruggedness: IP67 submersible and MIL-STD 810C-G rated.
Signaling & Encryption: Supports P25 Phase 1/2, conventional, trunking, and diverse encryption options (AES, DES, etc.).
Features: Integrated GPS/GLONASS
Flashcode: 9Q817A-201490-2
Q806: ASTRO IMBE Digital Operation
G996: Over the Air Provisioning
Q498: Hardware Multikey Encryption w/ OTAR
QA01767: ASTRO 25 Trunking Radio Authentication
QA00572: Primary Band: UHF Range 2
QA00573: Secondary Band: 700/800
QA00579: Enable Dual Band Operation
QA00583: Enable Bluetooth Operation
QA01749: Legacy SW System Key Enable
QA01843: Man Down Operation
H38: SmartZone Systems Operation
QA01833: Extreme 1-Sided Noise Reduction
Q947: APCO Packet Data Interface
Q173: SmartZone Omnilink MultiZone Operation
QA00580: Enable TDMA Operation
Q361: ASTRO 25 9600 Baud Trunking
