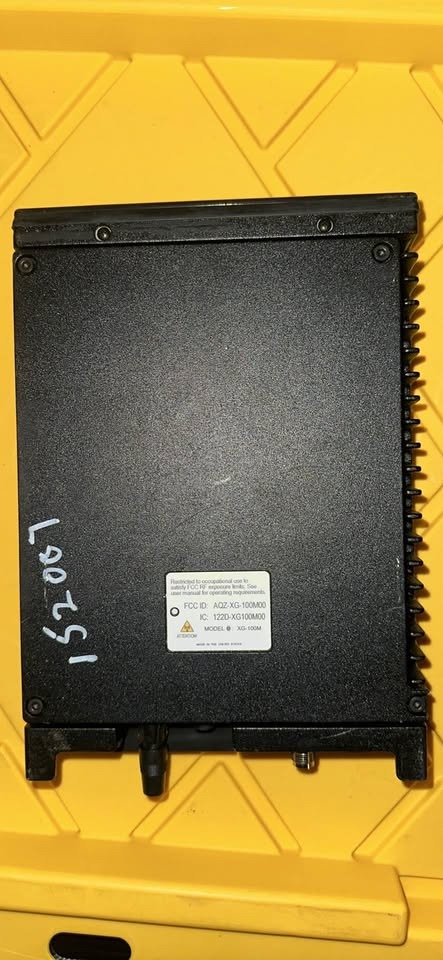

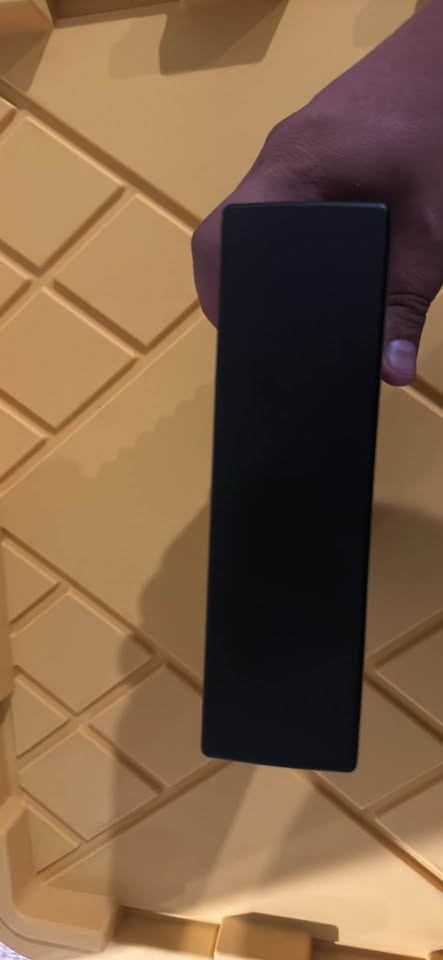

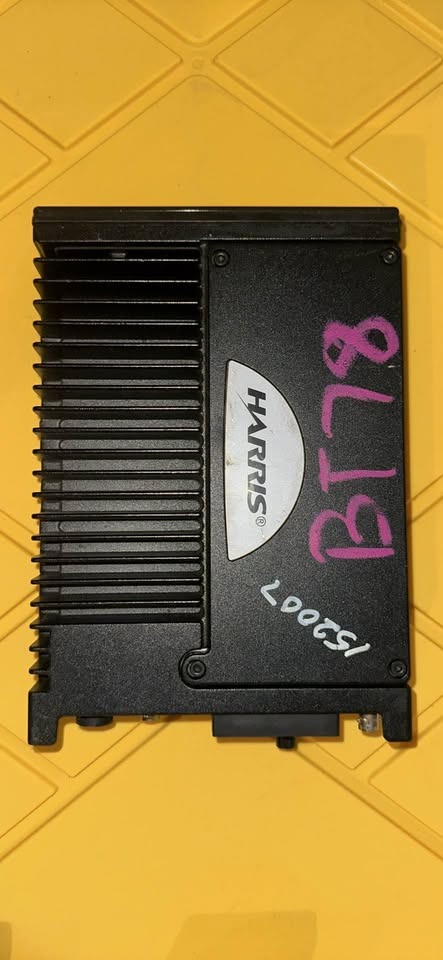

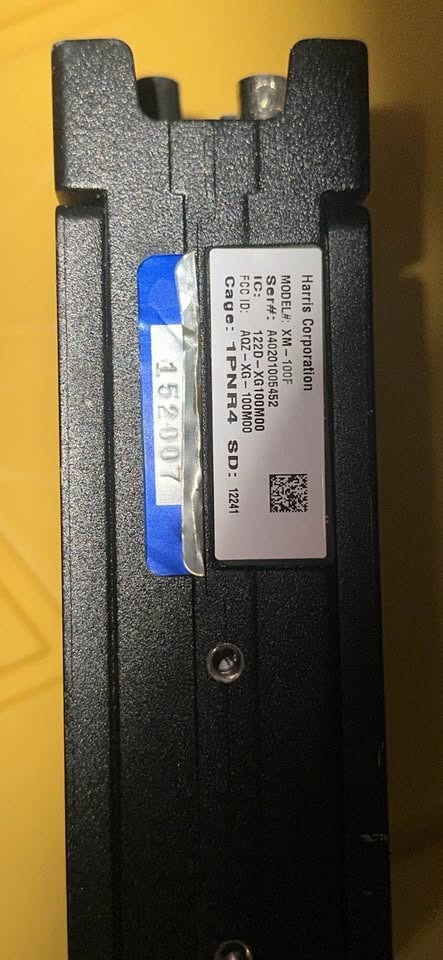

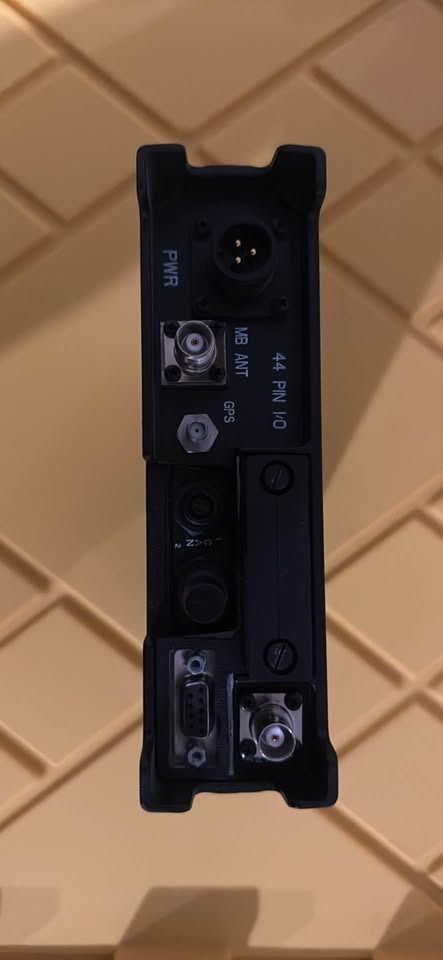

Product Overview When interoperability and performance are non-negotiable, the L3Harris Unity® XG-100M Multiband Mobile Radio delivers. Built for first responders, law enforcement, and critical infrastructure teams, this software-defined radio provides full-spectrum access across all major frequency bands (VHF-Low, VHF-High, UHF, and 700/800 MHz) without the need to switch devices.
By scanning across multiple bands, voice modes, and encryption types simultaneously, the XG-100M allows personnel to connect instantly with different jurisdictions and agencies. Its rugged, user-centric design exceeds MIL-STD-810G standards, ensuring durability in the field, while next-generation noise suppression technology guarantees your voice is heard loud and clear, even in the most chaotic environments.
Key Features:
-
True Multiband Operation: Operates seamlessly across VHF Low (30-50 MHz), VHF High (136-174 MHz), UHF (380-520 MHz), and 700/800 MHz frequencies in one centralized radio.
-
Future-Proof Connectivity: Software-defined architecture supports Analog Conventional, P25 Digital Conventional, and P25 Phase 1 and Phase 2 Trunking. It also supports legacy systems like EDACS® and ProVoice™.
-
Superior Audio Quality: Equipped with an AMBE+2™ vocoder and advanced noise cancellation, delivering distortion-free audio in high-noise situations.
-
Integrated Technology: Comes standard with built-in GPS for location tracking and Bluetooth® for wireless audio accessories.
-
Uncompromised Security: Protects sensitive communications with AES/DES-OFB encryption and Over-the-Air-Rekeying (OTAR) capabilities.
-
Versatile Control Options: Compatible with multiple control heads, including the CH-100 (featuring a large 4.3-inch sunlight-readable color touchscreen) and the durable CH-721 (3-line alphanumeric display).
Technical Specifications:
-
Frequency Range: 30-50 MHz, 136-174 MHz, 380-520 MHz, 762-870 MHz
-
Power Output:
-
VHF: 5-50 W
-
UHF: 5-50 W
-
700 MHz: 2-30 W
-
800 MHz: 2-35 W
-
-
Channel Capacity: Up to 12,500 channels/talkgroups (with CH-100 control unit)
-
Environmental Standards: Exceeds MIL-STD-810G for extreme temperatures, shock, and vibration; IP65 rated.
-
Operating Temperature: -22°F to +140°F (-30°C to +60°C)
Perfect for public safety fleets, utility vehicles, and tactical command centers that require reliable, secure, and adaptable communications.
